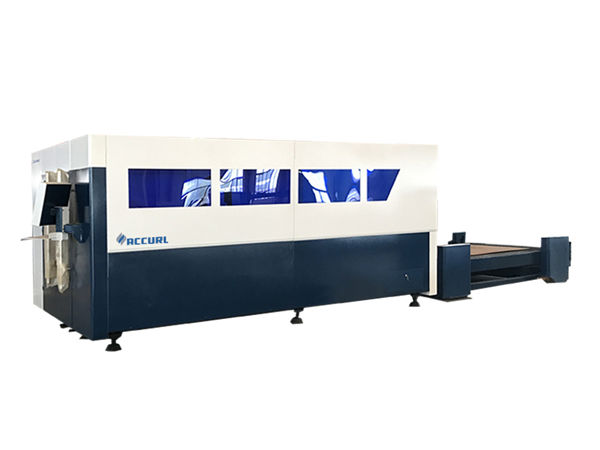

single platform cnc fiber laser cutting machine , metal sheet cutter

Produktinformation

Certifiering: CE / ISO / FDA / SGS / TUV
Betalnings- och leveransvillkor:
Minsta orderkvantitet: 1
Förhandlingsbart pris
Förpackningsdetaljer: Träväska
Leveranstid: 15 arbetsdagar
Betalningsvillkor: T / T, L / C, Western Union
Försörjningsförmåga: 2000 enheter

Detaljerad produktbeskrivning

Produktnamn:	Fiberlaserskärmaskin	Lasertyp:	Fiberlaser
Laserkraft:	500-1000w	Arbetsplats:	1500 * 3000mm
Laservåglängd:	1070-1090nm	Strömförsörjning:	380V / 50Hz
Garanti:	1 år	Skärhuvud:	Raytools

Huvudkonfiguration och teknisk fördel

Little to no maintenance costs
Parts process cost is very low
A "clean cut" surface quality is obtained
Fiber laser cutting is the fastest process for thin sheet metal
Reflective materials like aluminium,copper and brass can be cut with ease
Resonator life is over 100,000 working hours

^{Viktigaste egenskaper}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Snabb skärhastighet sparar arbetstid.
3. Energibesparing och miljöskydd;
4. Utmärkt ljusstrålkvalitet: liten fokusfasula, fin skärlinje, hög arbetseffektivitet, bästa bearbetningskvalitet.
5.Mycket låga underhållskostnader: optisk fiberöverföring, utan reflektionslinser; kan spara mycket underhållskostnader;
6. Produkter enkel drift: inget behov av att justera den optiska vägen;
7. Flexibel ljusstyreffekt: liten storlek, kompakt struktur och lätt att uppfylla flexibla tillverkningskrav.}

^{Tekniska parametrar}

^{Product name}	^{Fiberlaserskärmaskin}
^Lasertyp	^Fiberlaser
^{Working area(mm)}	^{13002500MM/15003000MM}
^{Cutting Head}	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Max körhastighet}	^600m/min
^{Positioneringsnoggrannhet}	^{≤ ± 0,05 mm}
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^Arbetsbord	^{Rack working platform}
^{Kontrollsystem}	^{Cypcut-kontrollsystem}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Max acceleration}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^Överföring	^{Precise pinion and rack,dual-drive transmitting}

Descriptions	parametrar
Modell	1530 Fiber laser cutting machine
Arbetsplats	1500 * 3000mm
Laserkraft	500W,1000W,15000W,2KW,3KW and so on, it depends on your demand.
Laser Wave Length	1064nm
Arbetsbord	Sawtooth
Maximum Idle Running Speed	1200mm/s
Position noggrannhet	±0.05mm/m
Position Speed	20m / min
Minimum Line Width	± 0.02mm
Skär tjocklek	0-12mm
Kontrollsystem	Cypcut
Position Type	red dot
Energiförbrukning	≤12KW
Working Voltage	380V / 50Hz
Auxiliary Gas	oxygen,nitrogen,air
Working life of fiber module	Mer än 100000 timmar
Fiber laser cutting head	Lasermech made in USA
Focus lens	Lasermech made in USA
Driver system	1500W Fuji servo motor made in Japan
Liner guider system	PMI made in Taiwan , (Option THK made in Japan)
Skicka systemet	Dual Rack & Pinion-typ
Racksystem	made in Germany
Chain system	Igus made in Germany
Delivery time	15 days

Produktapplikation

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

tillämpningar

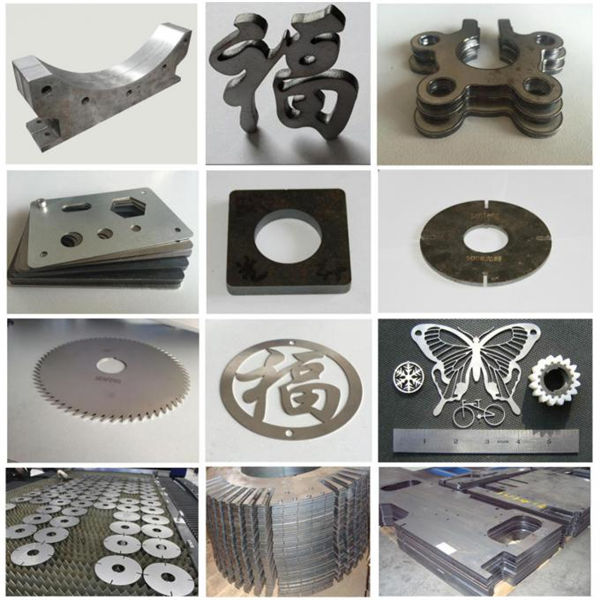

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
