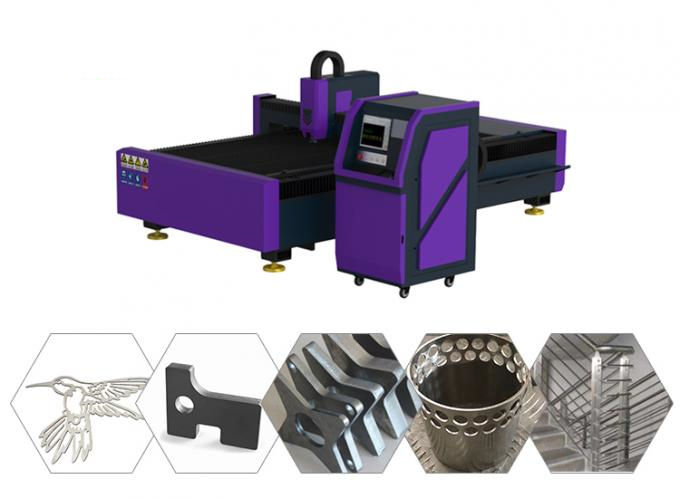

cnc metal cutting laser machine / fiber optic laser cutter

Produktinformation

Certifiering: CE / ISO / FDA / SGS / TUV
Betalnings- och leveransvillkor:
Minsta orderkvantitet: 1
Förhandlingsbart pris
Förpackningsdetaljer: Träväska
Leveranstid: 15 arbetsdagar
Betalningsvillkor: T / T, L / C, Western Union
Försörjningsförmåga: 2000 enheter

Detaljerad produktbeskrivning

Produktnamn:	Fiberlaserskärmaskin	Lasertyp:	Fiberlaser
Laserkraft:	500-1000w	Arbetsplats:	1500 * 3000mm
Laservåglängd:	1070-1090nm	Strömförsörjning:	380V / 50Hz
Garanti:	1 år	Skärhuvud:	Raytools

^{Huvudkonfiguration och teknisk fördel}

^{1, Fiber laser cutting is the fastest process for thin sheet metal.
2, A "clean cut" surface quality is obtained.
3, Reflective materials like aluminium,copper and brass can be cut with ease.
4, Parts process cost is very low.
5, Little to no maintenance costs.
6, Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7. Resonator life is over 100,000 working hours}

^{Viktigaste egenskaper}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Snabb skärhastighet sparar arbetstid.
3. Energibesparing och miljöskydd;
4. Utmärkt ljusstrålkvalitet: liten fokusfasula, fin skärlinje, hög arbetseffektivitet, bästa bearbetningskvalitet.
5.Mycket låga underhållskostnader: optisk fiberöverföring, utan reflektionslinser; kan spara mycket underhållskostnader;
6. Produkter enkel drift: inget behov av att justera den optiska vägen;
7. Flexibel ljusstyreffekt: liten storlek, kompakt struktur och lätt att uppfylla flexibla tillverkningskrav.}

^{Tekniska parametrar}

^{Product name}	^{Fiberlaserskärmaskin}
^Lasertyp	^Fiberlaser
^{Working area(mm)}	^{13002500MM/15003000MM}
^{Cutting Head}	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Max körhastighet}	^600m/min
^{Positioneringsnoggrannhet}	^{≤ ± 0,05 mm}
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^Arbetsbord	^{Rack working platform}
^{Kontrollsystem}	^{Cypcut-kontrollsystem}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Max acceleration}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^Överföring	^{Precise pinion and rack,dual-drive transmitting}

Produktapplikation

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

tillämpningar

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
