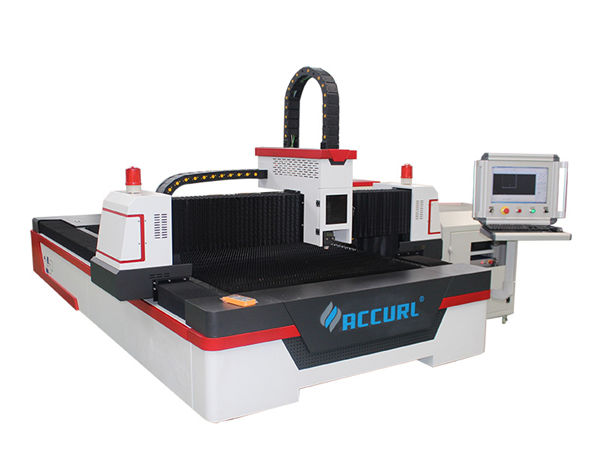

metal plate small laser cutter , small laser metal cutting machine 60m / min

Produktinformation

Certifiering: ISO9001: 2008

Betalnings- och leveransvillkor:

Minsta orderkvantitet: 1 enhet

Pris: förhandling

Förpackningsdetaljer: Träväska

Leveranstid: 7-15 dagar

Försörjningsförmåga: 2000 enheter per månad

Detaljerad produktbeskrivning

Produktnamn:	Fiberlaserskärmaskin	Laserkraft:	500W / 800w
Arbetsplats:	500 * 500 mm	Max hastighet:	60m / min
Positioneringsnoggrannhet:	± 0,01-0,03	Powe Supply:	3 × 380V ± 10% 220V ± 10%
Paket:	Trälåda	Garanti:	1 år

Produktbeskrivning

precision laser cutting machine is designed and made by RISE LASER. Adopted with leading laser technology for thin sheet metal application. The machine is combined with marble and Cypcut laser cutting system. With Integrated designing, dual gantry linear motor driving system, friendly interface and long term stable working.

Viktigaste egenskaper

1. Easy to operate: Adopted world’s leading technology EtherCAT bus USA cnc laser cutting system, very easy to operate;
2. Safe and compact structure: small size, very suitable for small and medium factories processing production;
3. High efficient and high speed: adopted double drive liner motor drive system, effectively improve the cutting accuracy and production efficiency;
4. Fiber laser source: adopted Maxphotonics laser source, which is the first domestic brand of the stable and reliable medium power laser source;
5. Precision cutting: adopted Swiss RAYTOOLS professional laser cutting head, to ensure the best cutting results;
6. Stable and durable: the machine tool is adopted granite marble, can keep shape and is high stable, which can effectively eliminate the shock generated by the high speed cutting processing;
7. Anti-corrosion, wear-resistant: the transmission parts is free maintenance, can cut corrosive materials.

Konfiguration

^#	^Artikel	^{Specifikation}	^varumärke	^Anmärka
¹	^Laserkälla	^800W	^Maxphotonics
²	^{linjär motor}
³	^{Optiskt galler}	^{upplösning 0,5μm}	^spanien
⁴	^Förare		^servotronix
⁵	^{Z-axel Skruvmodulgrupp}
⁶	^{Laserskärhuvud}	^BT230
⁷	^{Linjär styrskenor med precision}		^HIWIN
⁸	^Marmor	^{18001350200}	^Shandong
⁹	^Orgelhölje	^Standard
¹⁰	^{Bearbetning av material}	^Standard		^{flyg aluminiumlegering}

Parameter

^{Arbetsstorlek}		^{500 × 500 (mm)}
^{Max. Acceleration}		^{1,2 g}
^{X AXIS}	^{Max. Flytta hastighet}	^{60m / min}
	^Rutt	^500mm
	^{Positioneringsnoggrannhet}	^{± 0,01 mm}
	^{Upprepningens noggrannhet}	^{± 0.004mm}
^{Y AXIS}	^{Max. Flytta hastighet}	^{60m / min}
	^Rutt	^500mm
	^{Positioneringsnoggrannhet}	^{± 0,01 mm}
	^{Upprepningens noggrannhet}	^{± 0.004mm}
^{Z AXIS}	^Rutt	^100mm

Fungerande skick

¹	^{Arbetstemperatur}	^{-10 ℃ ~ 45 ℃}
²	^{Relativ fuktighet}	^{＜ 90% ingen kondensator}
³	^Miljö	^{Bra ventilation, ingen vibration}
⁴	^{Strömförsörjning}	^{3 × 380V ± 10% 220V ± 10%}
⁵	^{Effektfrekvens}	^50Hz

Application of Precision Fiber Laser Cutting Machine

Suitable for carbon steel ,mild steel,SS ,aluminum alloy plate and copper plate and other metal.It is suitable for medium and thin thickness material processing.
Tillämpad i metallbearbetning, luftfart, rymd, elektronik, elektriska apparater, rördelar, bil, livsmedelsmaskiner, textilmaskiner, teknikmaskiner, precisionsdelar, fartyg, metallurgisk utrustning, hissar, hushållsapparater, plåtbearbetning, köksredskap och apparater , hantverksgåvor, bearbetning av verktyg, dekoration, reklam, metallbearbetning och annan tillverkningsindustri.
