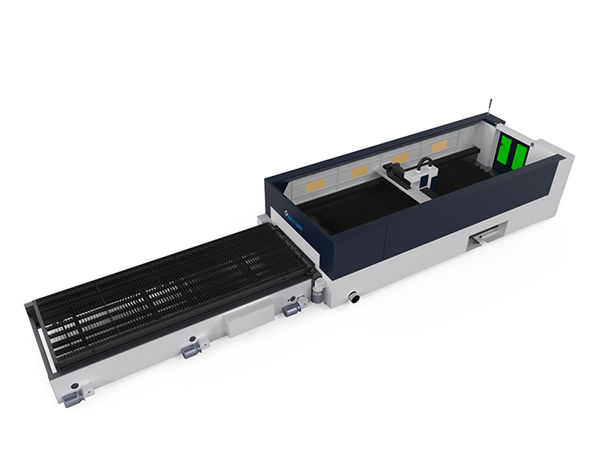

hög precision metallfiber laser skärmaskin 500w raycools skärhuvud

Produktinformation

The advanced fiber laser, available to cutting most of the metal sheet materials. Integrated design of machines tool accessories, fast disassemble and installation; funnel collection of both left side and right side, space-saving, energy saving, and low cost. Movable Gantry machine tool structure, to ensure long-time stability and security; Import servo systems and CNC systems, with good compatibility, strong stability, convenient maintenance and excellent processing capacity.

Funktioner

1. Import original packaging fiber laser, good bean quality, stable performance, without reflection lens and light path adjustment, maintenance free essentially, 100,000 hours working time
2. High rigidity machine bed, adopts exclusive standard annealing processing with high-temperature NC electric resistance furnace, ensure long-time stable precision of the machine tool
3. High transformation efficiency of fiber laser, which up to 30%, saving the working power consumption by a large margin, achieves low operating costs
4. Adopts the imported original guide transmission and servo motors, high precision, high speed
5. Smooth cutting edge, little deformation
6. Low power consumption, energy saving, overall power consumption 1/3-1/5 of the same power YAG machines, 3 times sheet metal cutting speed
7. Laser generated without gas, air can be used to cut sheet metal

Tekniska parametrar

Machine Model: LF3015M
Laser type: Import original fiber laser
Laser power: 500W / 1000W (optional)
Weight: 4500kg
Dimensions: 4600 * 2450 * 1700
Working area: 3000 * 1500mm (Customizable, 1500 * 4000mm, 2000 * 4000mm, 1500 * 6000mm,etc )
Repeat positioning accuracy: ± 0.02mm
Maximum speed: 50m / min
Maximum Acceleration: 0.3G
Transmission: High precision ball screw
Power consumption: <10KW (<12KW-1000W)
Power supply: 380V / 50Hz / 60Hz / 60A

Tillämpade fält för laserskärmaskin

Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials
